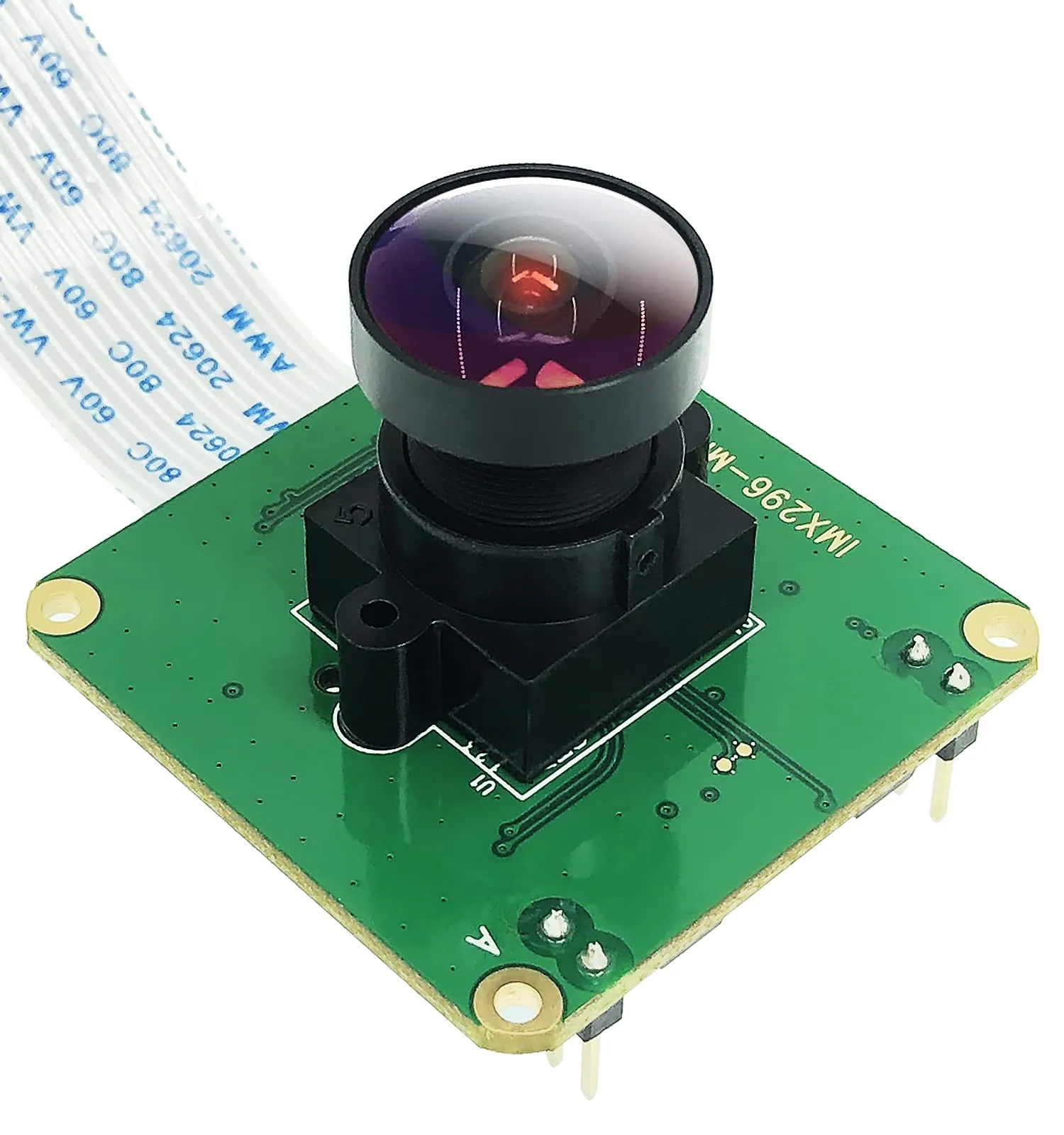

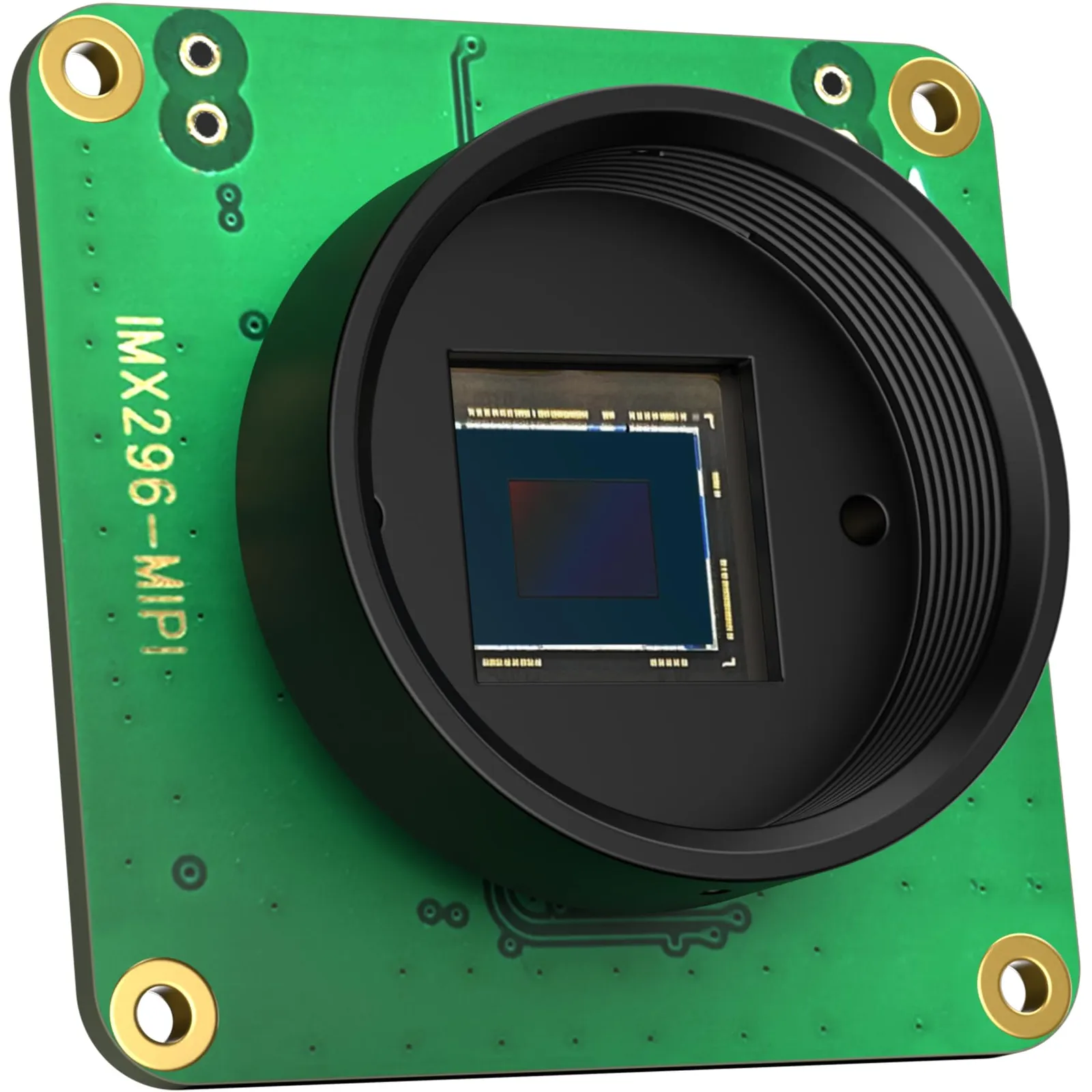

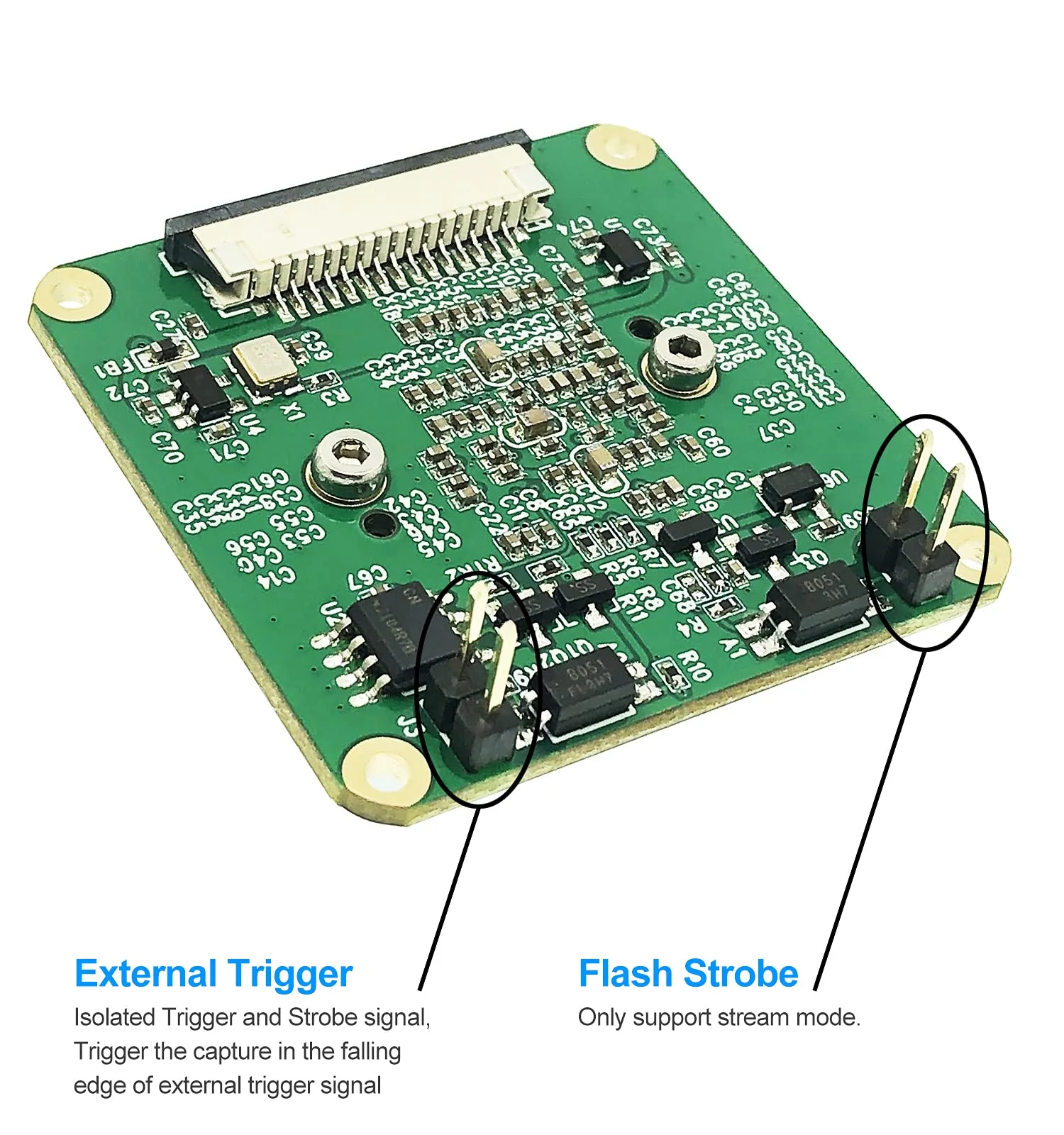

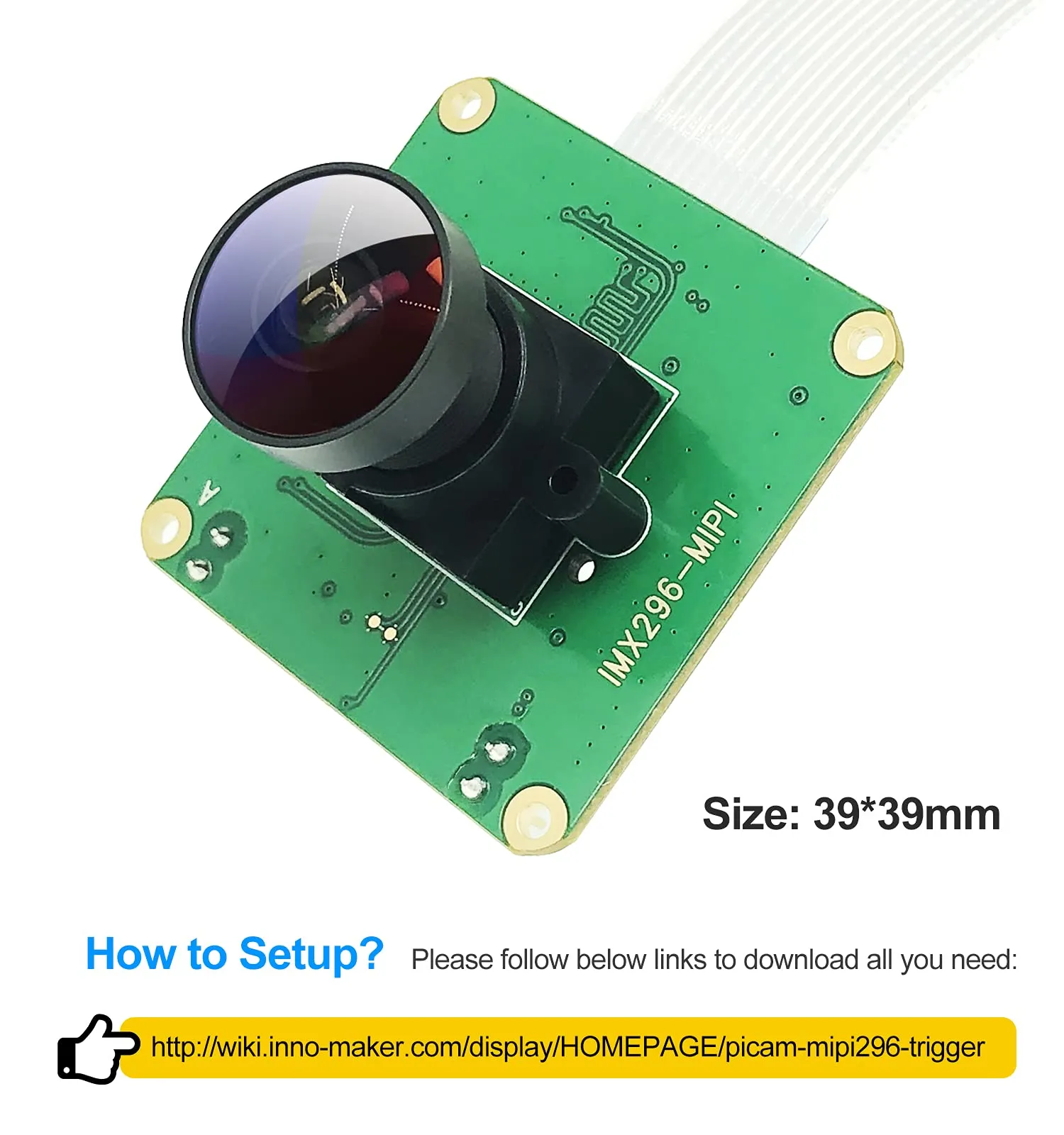

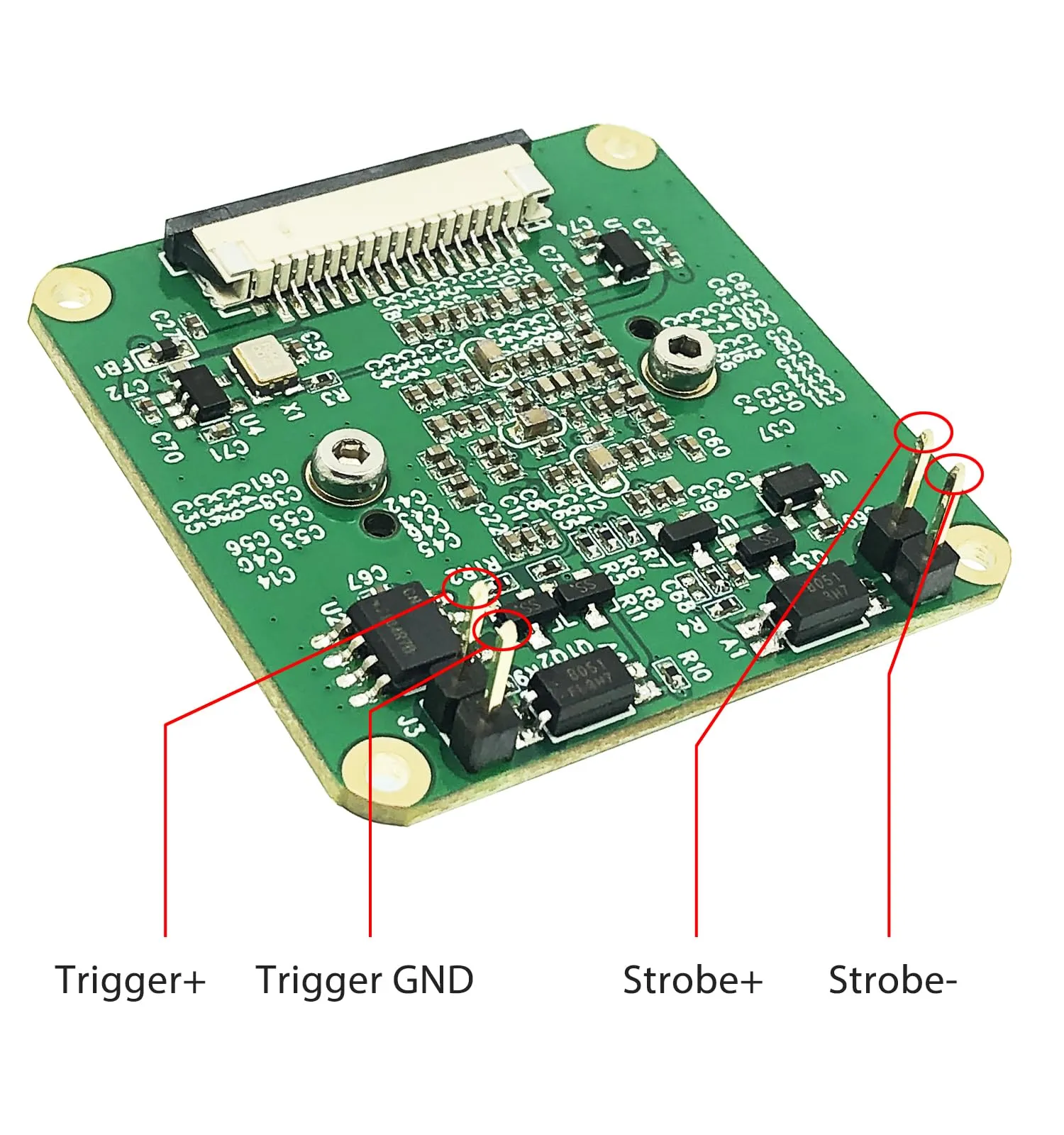

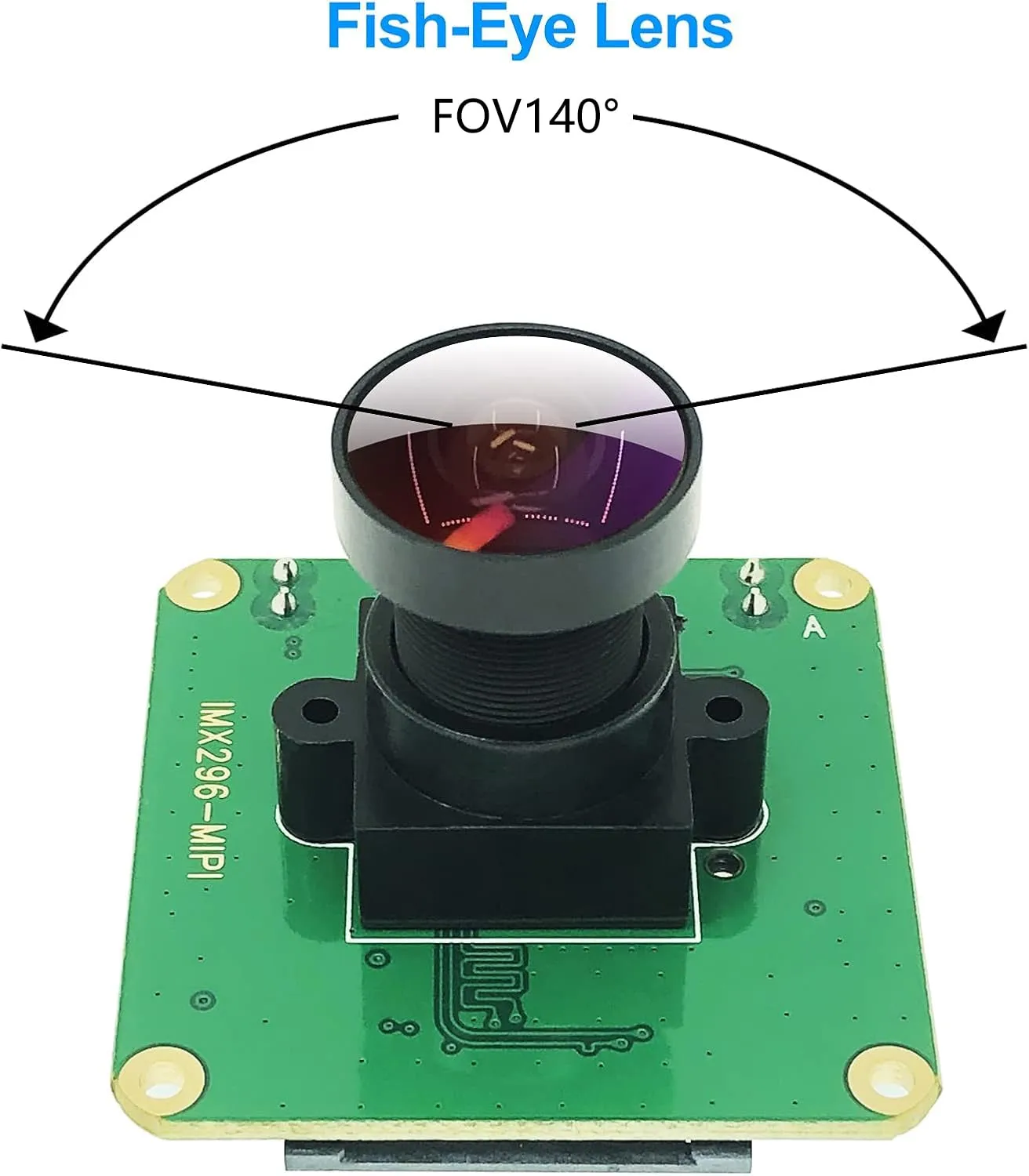

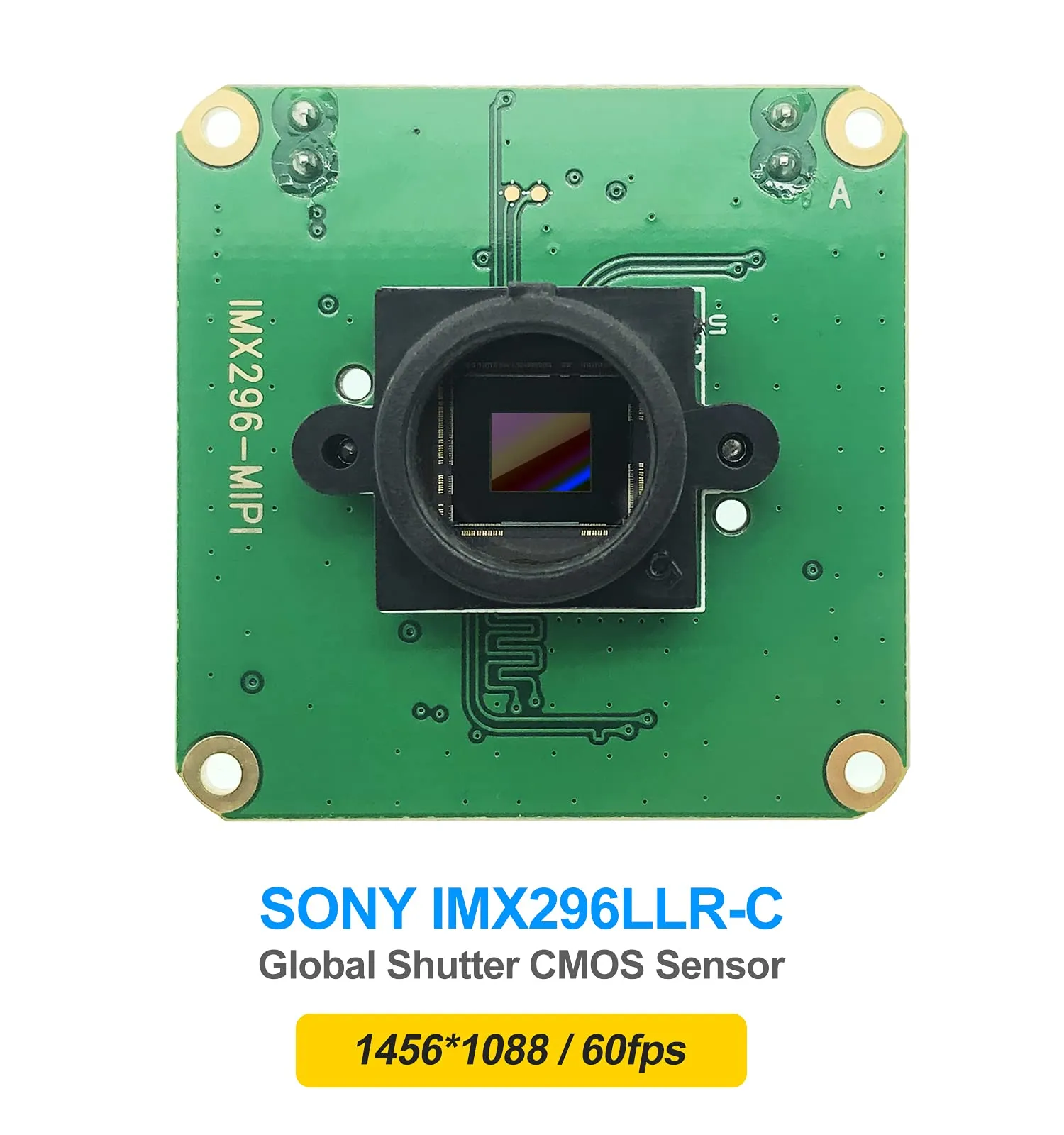

新品 未使用 おしゃれ 迅速発送 おすすめ この度はご覧頂き、誠にありがとうございます！ Raspberry Pi Mono Sensor Global Shutter Camera module gs camera module Support External Trigger60fps 1456x1088 resolution for raspberry pi The imx296 is a mono version gs camera module compatible with Raspberry Pi official gs camera module; Compatible with raspberry pi os with built in driver support libcamera directly; Support external fast trigger Isolated Trigger and Strobe signal Trigger the capture in the falling edge of external trigger signal. Come with a Fish-Eye Wide Angle Lens of FOV 160 angle. The mono gs camera module compatible with Raspberry Pi 4/Pi 3B+/Pi 3. The mono gs camera module sensor IMX296LLR-C is a diagonal 6.3mm (Type 1 / 2.9) CMOS active pixel type solid-state image sensor with a square pixel array and 1.58 M effective pixels. This chip features a global shutter with variable charge-integration time. This chip operates with analog 3.3V digital 1.2V and interface 1.8V triple power supply and has: - low power consumption. - High sensitivity low dark current and low PLS characteristics are achieved. (Applications: Sensing) Features: - Size: 39*39mm - Interface: RPI Camera 15 PIN FPC - Output format: Y10 - Output resolution:1456*1088 - Global shutter with variable charge-integration time Quick Start: step1 Modify config.txtadd dtoverlay=imx296 to the last line; step2 sudo nano /boot/cmdline.txtadd cma=128M to the last line; step3 libcamera-hello -t 0 配送について、商品のサイズや配送先都道府県によって最適な配送業者を選択しております。 業者・配送方法の指定は承れません。ご了承ください。 万が一の不着、紛失、誤配送の場合など、最後まで責任もって対応致しますのでご安心下さい。 宜しくお願い致します。
